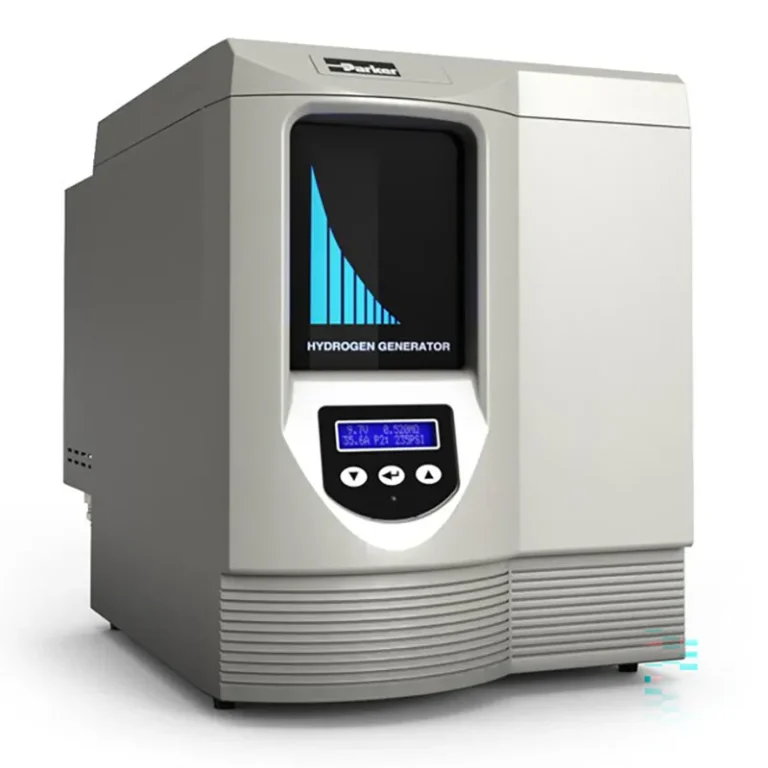

Parker Hydrogen Gas Generators
Parker hydrogen gas generators provide a continuous supply of ultra-high-purity hydrogen for GC and GC/MS fuel and carrier gas applications. Using PEM technology and palladium purification, the systems produce hydrogen onsite from deionized water and electricity.
Features and benefits
- Produces a continuous supply of 99.99999+% hydrogen purity
- Flow capacities available up to 1,300 mL/min
- Delivery pressures up to 175 psig (11.9 bar)
- Suitable for GC and GC/MS carrier gas and combustion detector applications
- Proven Proton Exchange Membrane technology generates hydrogen onsite from deionized water and electricity
- Palladium purification removes oxygen to less than 0.01 ppm
- Automatic water feed supports continuous operation
- Built-in sensing provides automatic shutdown if a hydrogen leak is detected
- Remote monitoring capabilities provide visibility into generator operation
- Multiple generators can be connected to support applications with greater hydrogen demand
- Compact design requires approximately one square foot of bench space
- Minimal maintenance or monitoring required
- Backed by a three-year standard cell warranty
- Meets NFPA 50A safety guidelines.
Generate Hydrogen On Demand
Parker hydrogen generators use proven Proton Exchange Membrane (PEM) technology to produce hydrogen from deionized water and electricity. The generated gas then passes through a palladium purification stage to remove residual oxygen and provide the purity required for sensitive analytical applications.
The systems are designed for GC and GC/MS carrier gas applications as well as combustion detector applications. For laboratories with greater hydrogen requirements, multiple generators can also be connected using Parker’s cascading technology.
Find the Right Equipment for Your Application
Hydrogen requirements vary based on your instruments, application, required purity, pressure, flow rate and overall laboratory demand. Air Energy can help you evaluate those requirements and identify the Parker hydrogen generation equipment that best fits your application.
