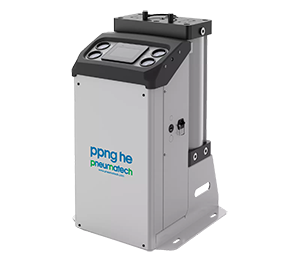

Pneumatech PPNG 1-5.5 HE PSA Nitrogen Generators
The Pneumatech PPNG 1-5.5 HE PSA nitrogen generators provide a reliable source of on-site nitrogen for industrial applications with low-flow, high-purity requirements. With selectable nitrogen purity from 95% up to 99.999%, the range allows facilities to produce nitrogen based on their specific process requirements.
Designed for efficient operation and a compact footprint, the PPNG 1-5.5 HE helps reduce dependence on delivered nitrogen while giving facilities greater control over nitrogen supply, purity, and operating costs.
- Cost-efficient alternative to gas cylinders
- Efficient PSA cycle design
- Economizer function helps prevent air and energy waste
- Selectable nitrogen purity up to 99.999%
- Compact footprint
- Easy integration with existing compressed air systems
High-Purity Nitrogen
Produce nitrogen at selectable purity levels from 95% up to 99.999% to meet different process requirements.
Energy-Efficient Operation
Optimized PSA technology and energy-saving controls help reduce compressed air consumption and operating costs.
Compact Design
A small footprint makes the generator easier to integrate into existing compressed air systems.
Reliable On-Site Supply
Produce nitrogen directly at your facility and reduce dependence on cylinders or delivered nitrogen.
- Advanced controller with color display
- Nitrogen purity analyzer
- Inlet dew point monitoring
- Outlet dew point monitoring
- Mass flow controller
- Flow meter sensor
- External oxygen analyzer
- Technology: Pressure Swing Adsorption (PSA)
- Nitrogen purity: Up to 99.999%
- Inlet pressure: 60–145 psig
- Inlet temperature: 41–122°F
- Required inlet air quality: ISO 8573-1:2010 Class 1-4-1
- Power supply: 115V AC / 230V AC, 50/60 Hz
