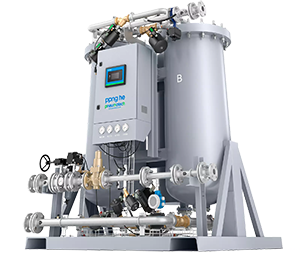

Pneumatech PPNG 100-800 HE PSA Nitrogen Generators
The Pneumatech PPNG 100-800 HE PSA nitrogen generators provide reliable, high-purity on-site nitrogen for demanding, high-flow industrial applications. With selectable nitrogen purity from 95% up to 99.999%, the system allows facilities to produce nitrogen based on their specific process requirements.
Designed for high efficiency and dependable performance, the PPNG 100-800 HE combines advanced PSA technology, intelligent controls, and energy-saving features to provide a consistent nitrogen supply while helping reduce compressed air consumption and operating costs.
- Advanced PSA cycle for efficient nitrogen production
- High-efficiency Carbon Molecular Sieves (CMS)
- Variable Flow Saver (VFS) technology
- Selectable nitrogen purity up to 99.999%
- Automatic purity regulation with zirconia sensors
- Purelogic Touch controller
- Designed and tested for cyclic loads
- Heavy-duty welded construction
- Optional outdoor installation
- Advanced monitoring and connectivity capabilities
Reduce Energy Consumption
Variable Flow Saver technology adjusts compressed air consumption based on nitrogen demand and can provide up to 40% additional energy savings during lower-load operation.
Maintain Reliable Nitrogen Purity
Automatic regulation and zirconia oxygen sensors continuously monitor the system to maintain the selected nitrogen purity.
Support High-Flow Applications
The PPNG 100-800 HE is designed for applications requiring larger volumes of high-purity nitrogen.
Reduce Dependence on Delivered Nitrogen
On-site nitrogen generation reduces the need for bottled nitrogen deliveries while giving facilities greater control over their nitrogen supply.
Built for Long-Term Performance
A heavy-duty welded design and protective features are designed to support a long generator and CMS service life, including under cyclic operating conditions.
- Outlet dew point sensor — Monitors the pressure dew point of the outlet nitrogen.
- External room oxygen monitor — Monitors oxygen levels in the surrounding room.
- Low ambient temperature version — Allows operation in temperatures down to 14°F (-10°C).
- Low PDP sensor — Provides monitoring for applications with very low inlet pressure dew points.
- NEMA 4X / IP65 control box — Stainless steel enclosure designed to protect controls in outdoor installations.
- Technology: Pressure Swing Adsorption (PSA)
- Nitrogen Purity: 95%–99.999%
- Inlet Pressure Range: 72–150 psig
- Ambient Temperature Range: 41–122°F
- Low-Temperature Option: Down to 14°F with appropriate configuration
- Required Inlet Air Quality: ISO 8573-1:2010 Class 2-4-1
- Power Supply: 115V AC / 230V AC, 50/60 Hz
