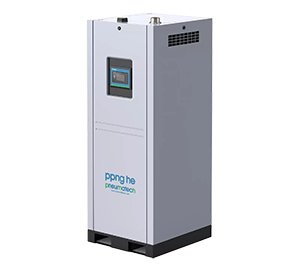

Pneumatech PPNG 6-90 HE PSA Nitrogen Generators
The Pneumatech PPNG 6-90 HE PSA nitrogen generators provide reliable, high-purity nitrogen for low- to medium-flow industrial applications. Using Pressure Swing Adsorption (PSA) technology, the system produces nitrogen at selectable purity levels from 95% up to 99.999%, allowing facilities to match nitrogen quality to their specific process requirements.
Designed for high efficiency and dependable performance, the PPNG 6-90 HE combines advanced PSA technology, intelligent controls, and energy-saving features to help reduce compressed air consumption while providing a consistent on-site nitrogen supply.
- Innovative PSA cycle for efficient nitrogen generation
- High-efficiency Carbon Molecular Sieves (CMS)
- Variable Flow Saver technology
- Selectable nitrogen purity up to 99.999%
- Automatic purity regulation with zirconia sensors
- Purelogic™ Touch controller
- Designed and tested for cyclic loads
- Remote monitoring and connectivity through ICONS
Reduce Energy Consumption
Variable Flow Saver technology automatically reduces compressed air consumption when nitrogen demand is lower and can reduce consumption to zero when no nitrogen is being used.
Maintain Consistent Nitrogen Purity
Automatic regulation and zirconia sensors help maintain the selected nitrogen purity for reliable process performance.
Generate Nitrogen On-Site
Produce nitrogen directly at your facility and reduce dependence on cylinders, bulk nitrogen, and scheduled deliveries.
Improve System Control
The Purelogic™ Touch controller provides centralized control, while ICONS connectivity enables remote monitoring of system performance.
Built for Reliable Operation
The extruded-profile design and ability to handle cyclic loads support dependable performance and a long operating life.
- Outlet dew point sensor — Monitors the pressure dew point of the outlet nitrogen.
- External room oxygen monitor — Measures oxygen levels in the surrounding room for added safety.
- Low ambient temperature version — Allows operation in ambient temperatures down to 14°F (-10°C).
- Technology: Pressure Swing Adsorption (PSA)
- Nitrogen Purity: 95%–99.999%
- Inlet Pressure Range: 60–189 psig
- Inlet Temperature Range: 41–140°F
- Required Inlet Air Quality: ISO 8573-1:2010 Class 1-4-1
- Power Supply: 115V AC / 230V AC, 50/60 Hz
- Approvals: IEC, UL and CRN
