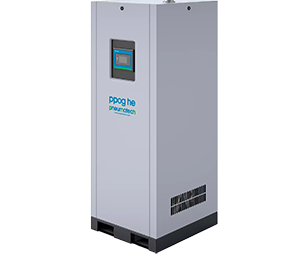

Pneumatech PPOG 2-18 HE PSA Oxygen Generators
The Pneumatech PPOG 2-18 HE PSA oxygen generators provide a reliable, efficient source of on-site oxygen for a wide range of industrial applications. Using Pressure Swing Adsorption (PSA) technology, the system produces oxygen at selectable purity levels from 90% to 95%, giving facilities greater control over oxygen supply and quality.
Designed for high efficiency and dependable performance, the PPOG 2-18 HE combines advanced PSA technology, intelligent controls, and integrated monitoring to help reduce energy consumption and operating costs while maintaining a consistent oxygen supply.
- Advanced PSA oxygen generation technology
- Oxygen purity from 90% to 95%
- High-performance Zeolite Molecular Sieves (ZMS)
- Zirconia sensors for oxygen purity monitoring
- Purelogic™ Touch controller
- Variable Flow Saver technology
- Compact footprint
- Air and oxygen quality sensors
- Integrated pressure regulator and flow meters
- Plug-and-play installation with automatic start-up
- Connectivity to DCS, SCADA, and PLC systems available
Reduce Energy Consumption
The PPOG 2-18 HE uses up to 30% less energy than traditional oxygen generators, helping reduce the cost of producing oxygen on-site.
Save More at Lower Demand
Variable Flow Saver technology adjusts operation based on oxygen demand, providing up to 70% additional energy savings at low load.
Maintain Reliable Oxygen Purity
Integrated zirconia sensors continuously monitor oxygen purity to support consistent oxygen quality.
Simplify Installation
The compact, plug-and-play design includes key monitoring and control components for easier integration and automatic start-up.
Reduce Dependence on Delivered Oxygen
Generating oxygen on-site gives facilities greater control over supply while reducing reliance on external oxygen deliveries.
- Low ambient temperature option — Supports operation down to 14°F (-10°C)
- Oxygen pressure dew point sensor
- Wall-mounted room oxygen monitor
- Technology: Pressure Swing Adsorption (PSA)
- Oxygen Purity: 90%–95%
- Inlet Pressure Range: 65–145 psig
- Inlet Temperature Range: 41–122°F
- Low-Temperature Option: Down to 14°F
- Required Inlet Air Quality: ISO 8573-1:2010 Class 1-4-1
- Power Supply: 115–230 VAC / 50–60 Hz
- Approvals: IEC and CSA/UL available
